At Kaishan, we know air compressors. That’s because we live and breathe air compressors each and every day. With more than 500 years of compressor experience, we know our way around the industry. Airtec Filtration Ltd can help you select your next oil free or oil lubricated air compressor.

Lets look at the Kaishan 2 stage compressor technology.

Kaishan PMV Permanent Magnet VSD Rotary 2 stage compressor

  • COMPLETE AIR OUTPUT CONTROL

  • LOWER ENERGY INPUT

  • GREATLY REDUCED PART LOAD ENERGY USE

  • NO STARTING SPIKES AND COST PENALTIES

  • STEADY SYSTEM PRESSURE

  • OUTSTANDING MOTOR EFFICIENCY
    REDUCED

  • MAINTENANCE TIME AND COST

  • SIGNIFICANTLY LOWER NOISE LEVELS

Kaishan Service from Airtec Filtration Ltd

The Kaishan team is deeply tenured. With more than 500 years of real-world experience working with compressed air, we have helped countless companies improve their operations and processes with air compression technology. Whether you need a rotary screw air compressor or an industrial vacuum pump, you can count on Kaishan to find you the right solution for your application.

Kaishan has worked with clients from a multitude of industries. From oil and gas to breweries and aerospace, chances are we have experience addressing and solving the problems you experience on a daily basis. Our team is proud to help companies accomplish their business goals through the use of our air compressors.

Airtec are committed to following Kaishan's lead and offer you a great service package. Contact Michael today for more information

Lifetime Air End warranty From Kaishan

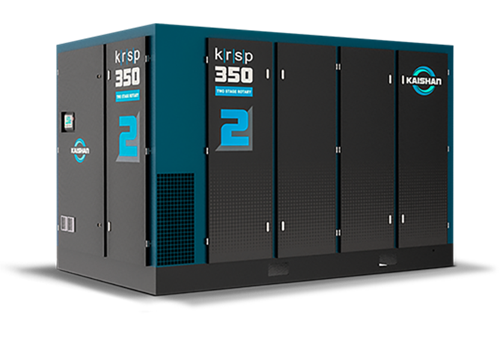

Lifetime Air End warranty...A two-stage rotary screw air compressor contains two sets of gear-driven airends to maximize energy efficiency and increase reliability. The KRSP2 air compressor features efficient operation at nearly any level of hor sepower, including those not normally available for a two-stage screw compressor. With two-stage compressor horsepower options as low as 30 HP, we are the only manufacturer with operation this option below 125 HP. Our 30-100 HP, inline, two-stage design offers leading efficiency at a competitive price point.

Kaishan Air End Technology

Continued development has created an advanced air end efficency by more than 20% over previous models.

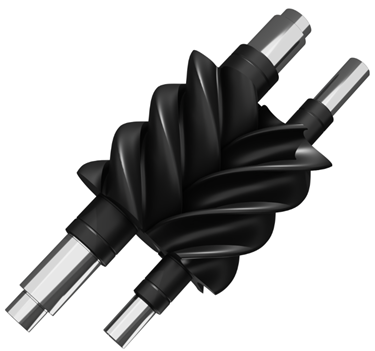

  • Larger Rotor Size To increase the rotor throughput, the airends of our PMV compressors are larger than usual. They are built with 5/6 lobes and larger rotor size which reduces the specific power consumption whilst operating at low speed.

  • Lower inter-lobe leakage losses Pressure differences between two neighbouring work chambers is small due to a greater number of lobes. This reduces inter-lobe leakage losses, hence leakage to delivery ratio decreases as the number of lobes increases.Larger wrap angle & discharge port A greater number of lobes combined with larger wrap angle ensures multiple rotor contact. This reduces vibration which minimises noise. Larger discharge ports decrease the discharge velocity and therefore reduce the discharge pressure losses increasing the compressor’s overall efficiency. ‘

New Kaishan Products 2026

  • 200 HP Direct Drive
  • Capacities:
    • 918 CFM at 100 PSI
    • 871 CFM at 115 PSI
    • 764 CFM at 150 PSI
    • 652 CFM at 190 PSI
  • 460/3/60 voltage
  • Glycol-cooled variable speed drive and motor
  • Internal heaters and sump heater built-in
  • 126" L x 57" W x 70" T

KAISHAN Compressor Hire UK

Why not consider long term hire of your next air compressor. Airtec Filtration Ltd  cater for oil lubricated and oil free hire packages.

Hiring has numerous benefits for expanding businesses, including.

  • Upsize or downsize your compressor
  • Use cash for other essential business expansion
  • 'Hire equipment is 'off balance sheet'
  • All service and breakdowns are covered with 24 hour inclusive care
  • Get the latest energy efficient technology and save energy
  • Need help with a new compressor and air treatment choice. Contac Airted +44 1744 7332311 or just email us

KAISHAN Oil Free Compressors

The KROF two-stage oil-free rotary screw air compressor represents Kaishan’s commitment to catering to the growing demand for oil-free air across various industries. The KROF is designed to provide uncontaminated, highly efficient, reliable air with a reduced environmental footprint. As industries like pharmaceuticals, food and beverage, and electronics manufacturing increasingly require pure air, oil-free air solutions have become more critical. The KROF offers a solution that not only meets ISO Class 0, but also ensures enhanced performance and lower operational costs. This makes it an ideal choice for businesses looking to optimize their air compression systems while adhering to environmental and quality standards.

The KROF oil-free air compressor exemplifies cutting-edge engineering with its two-stage design, where each stage is powered by a pinion gear driven by a singular, robust bull gear. This gear setup is efficiently coupled to a single, high-efficiency drive motor, embodying a design that is both simple and effective. This streamlined configuration not only enhances energy efficiency but also significantly improves reliability.
Optimized for superior performance over a wide range of horsepower levels, the KROF stands out in its category. A notable feature of our product is the airend, which is designed and manufactured in the USA. This allows us to uphold the highest quality standards in our production process, carried out in our state-of-the-art facility in Loxley, Alabama.







KAISHAN Oil Free Technology

Air Compressors Engineered to Deliver Industry-Leading Performance

Our compressors are very durable and reliable because of a range of features, including:

— A sound-deadening enclosure that keeps noise to a minimum and reduces the risk of occupational injury
— A range of standard safety features, such as guards for all rotating components, UL and NEC designed electrical components, and an internal spill-containment system
— A Modbus compatible control system that allows for sequencing and remote monitoring of system performance, while providing alerts and protecting the unit in the event of a fault
— Centrifugal fans that deliver even airflow and more efficient cooling
— Our exclusive ‘Ultra Web’ air filter removes particles as small as five microns, keeping your compressor from ingesting dirt and wear particles that would otherwise shorten the life of your compressor

KAISHAN Oil Free Technology

Reliable Air Compression at an Accessible Price

For the past 60 years, we have developed industry leading compressed air equipment. Our decades of experience provide you with increased insight into what you and your business need at an affordable price.

We are one of the world’s largest manufacturers of compressed air equipment—including energy efficient two-stage air compressors—operating in modern, specialized manufacturing facilities. We combine highly skilled engineering with low-cost manufacturing to offer the highest value to you, our customer.

As a leader in rotary screw air compressor solutions, we serve the needs of a wide range of industries. No matter which sector you operate in, you can turn to Kaishan for the right compressor for your needs. Reach out today to learn more about KROF air compressors and see how the Kaishan team can help you better meet your goals. Contact Us now

Or simply call +44 1744 733211



Airtec Filtration Ltd are authorised sellers of Kaishan products in the United Kingdom
